Self Loading All-in-One Stacker Fully Electric Lifting Capacity 1000Kg, 1.3m Lifting Height PNXFESLS-1013 - Pronix

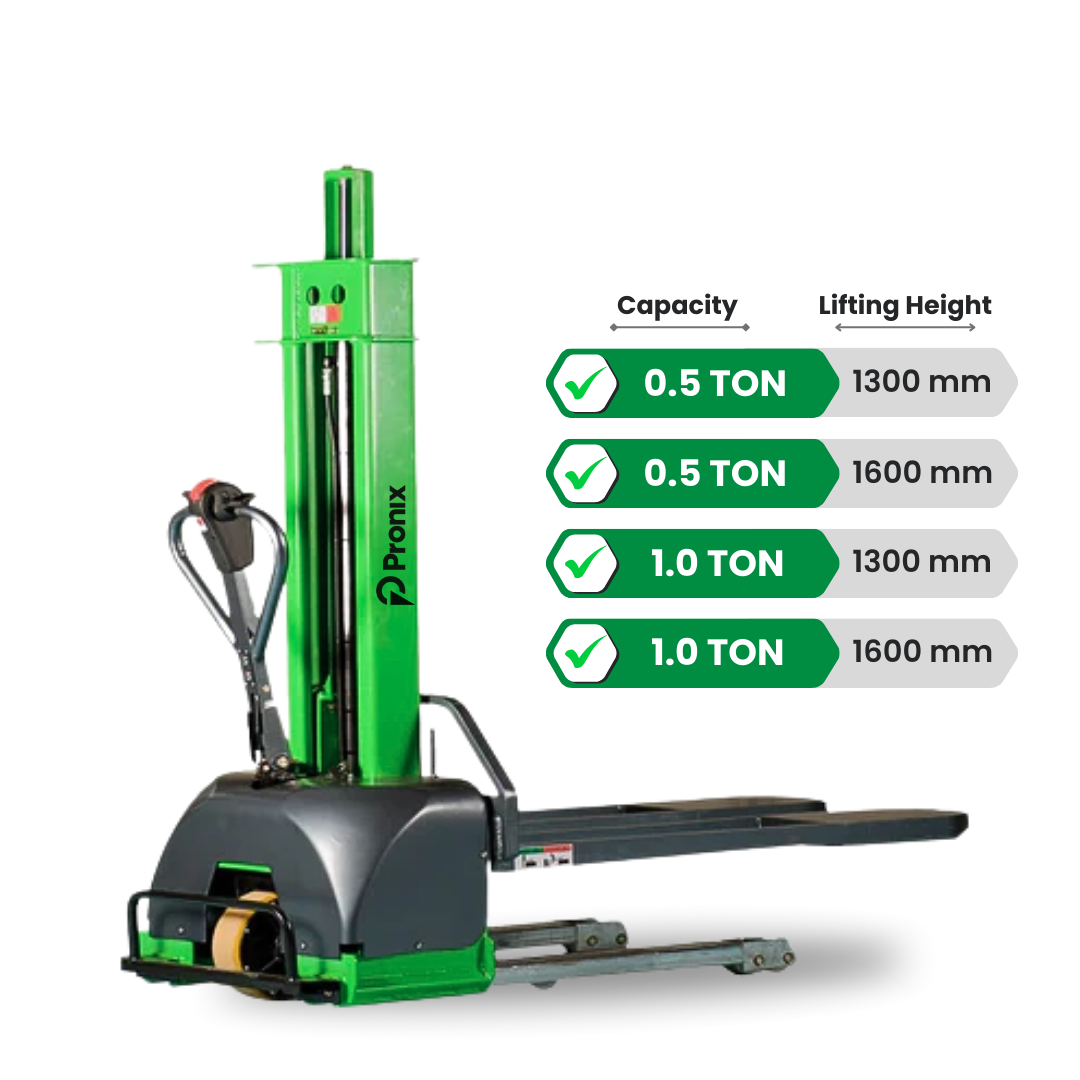

The Pronix Fully Electric Self Loading Stacker PNXFESLS-1013 is an efficient and compact solution designed for smooth material handling in warehouses, factories, and commercial storage areas. With a lifting height of 1.3 meters and a load capacity of 1000 kg, it ensures quick and safe movement of goods with minimal manual effort.

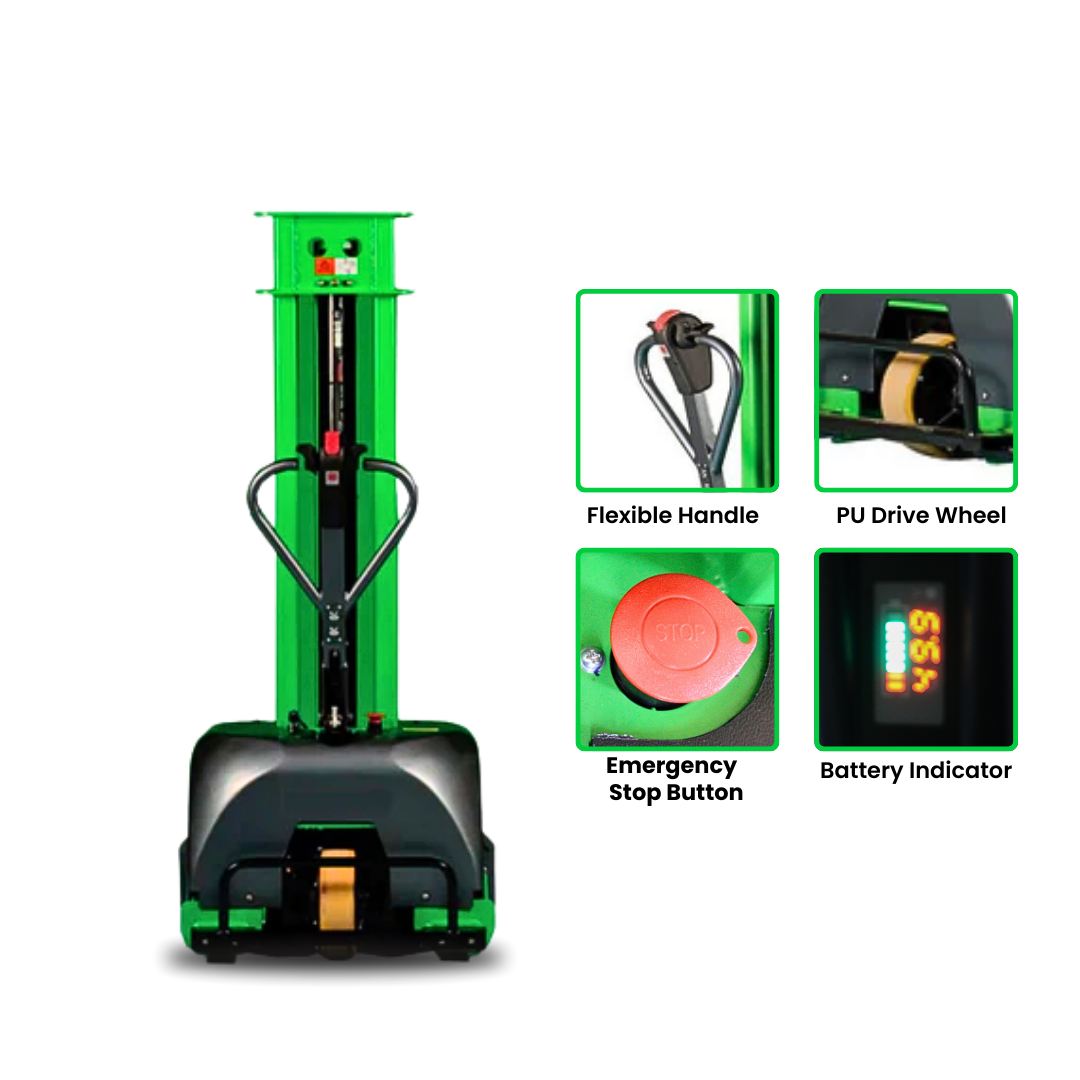

Built with a walking-type operation and robust wheel design, this stacker offers excellent maneuverability and control in tight spaces. Its DC-powered drive and lift motors deliver consistent performance, while the 15 Ah lithium battery ensures energy efficiency and long operational life.

Crafted with durable materials, the PNXFESLS-1013 provides reliable, low-maintenance performance for everyday industrial use. Lightweight yet powerful, it enhances workplace productivity by enabling operators to handle heavy loads with precision and ease.

Perfect for modern warehouse environments, the Pronix Fully Electric Self Loading Stacker combines power, mobility, and reliability, making it an ideal choice for businesses seeking efficiency and long-term value.

Specifications

  • Brand - Pronix
  • Type - Fully Electric Self-Loading Stacker
  • Model - PNXFESLS-1013
  • Capacity - 1000 Kg
  • Load Center Distance - 500mm
  • Fork Outer Spacing - 685mm
  • Fork Length - 1195mm
  • Operation Type - Walking Type
  • Forward & Backward - Electric
  • Lifting Up & Down - Electric
  • Drive Wheel Size - Ø 250 x 74 mm
  • Load Wheel Size - Ø 80 x 60 mm
  • Middle Wheel - Ø 65 x 30 mm
  • Fork Lift Height - 1300mm
  • Fork Starting Height from the Ground - 81mm
  • Wheel Base - 974mm
  • Vehicle Length - 1650mm
  • Body Thickness - 409mm
  • Body Width - 658mm
  • Front Track - 518mm
  • Single Fork Width - 253mm
  • Minimum Turning Radius - 1173mm
  • Maximum Driving Speed (Turtle Speed) - 0.5 km/h
  • Maximum Driving Speed (Full Load) - 3.0 km/h
  • Motor - DC 0.6 kW
  • Lift Motor - DC 2.2 kW
  • Battery - Lithium Battery (48 V)
  • Battery Capacity - 15 Ah
  • Battery Weight - 5 Kg
  • Overall Weight (Include Battery) - 382 Kg

Description

  • Pronix Fully Electric Self Loading Stacker 1000Kg with Lifting Height 1.3m PNXFESLS-1013 is a highly durable and powerful stacker suitable for various commercial purposes.
  • Its maximum load capacity of 1000 Kg and load center distance of 500mm allows for efficient transportation of heavy materials.
  • It has an operating type of walking-type, drive wheel size of Ø 250 x 74 mm, load wheel size of Ø 80 x 60 mm, and a maximum driving speed of 3.0 km/h.
  • The stacker is powered by a DC 0.6 kW motor and a DC 2.2 kW lift motor and supports a lithium battery of 15 Ah.
  • The durable construction and lithium battery provide reliability and a weight of only 5kg.
  • This stacker is perfect for warehouses and factories.
